Is your view of the outdoors marred by unsightly tears or holes in your window screens? Beyond the aesthetics, a damaged mosquito net is an open invitation for uninvited guests—flies, mosquitoes, and other pests—to make themselves at home. While small patches work for minor snags, a full replacement is often the most durable and professional-looking solution.
If you’re looking to refresh your home’s curb appeal and keep the bugs at bay, follow this comprehensive, pro-level guide to replacing your window screens.
Preparation: Choosing the Right Materials
Before diving in, understand that not all materials are created equal. For a high-quality finish, gather:
-
New Screen Mesh: Fiberglass is the industry standard for its flexibility, while aluminum offers superior durability against pets or high winds.
-
Screen Spline: This is the vinyl or rubber cord that locks the mesh. If your old spline is brittle or cracked, replace it. (Standard sizes are usually .125″, .140″, or .160″).

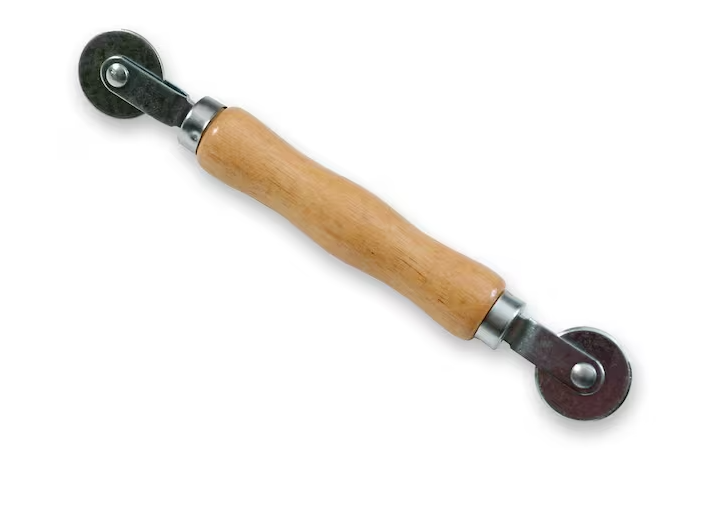

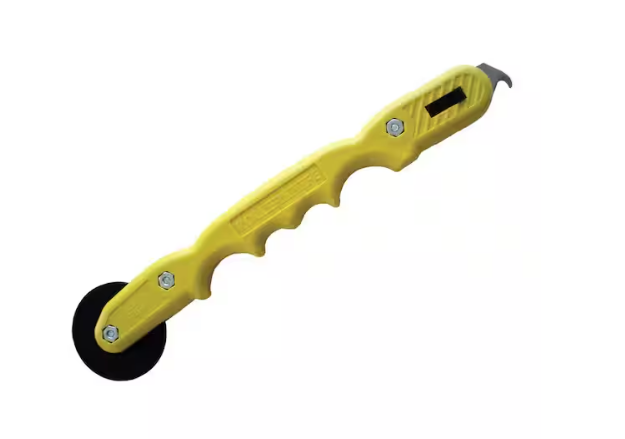

- Spline Roller Tool: This is your most important tool. It features a concave wheel and a convex (pointed) wheel.
-
Cleaning Kit: White vinegar, a nylon scrub brush, and microfiber cloths.
Step 1: Frame Restoration and Deep Cleaning
A common mistake DIYers make is installing new mesh on a dirty frame. Over time, screen tracks accumulate mold, mildew, and oxidation (rust).
-
Debris Removal: Use a flat-head screwdriver to pull out the old spline. Be careful not to bend the aluminum frame.
-
The Vinegar Soak: Mold thrives in the damp environment of window tracks. Scrub the grooves with a 50/50 mix of water and white vinegar. This doesn’t just clean; it kills the spores.
-
Rust Treatment: If you see white powdery oxidation on the aluminum, use a stiff brush or fine-grit sandpaper (400-600 grit) to smooth it out. A smooth track allows the spline to slide in without catching.
-
Dry Thoroughly: Ensure the frame is 100% dry before proceeding. Moisture trapped under the spline can lead to premature rot.
Step 2: Sizing and Positioning
Lay your frame on a flat, solid surface. Unroll the mesh over the frame.
-
The 3-Centimeter Rule: Leave at least 3 centimeters (about 1.5 inches) of overhang on all four sides.
-
Tension Control: Tape the mesh to the top and bottom of your work surface. If the mesh is too loose, it will sag; if it’s too tight, it will pull the frame inward, creating an “hourglass” shape.
Step 3: The Art of Spline Rolling
This is where professional technique matters most.
-
Select Your Pointed Wheel: Note that pointed (convex) wheels come in different thicknesses. Using a wheel that is too thick for your specific frame groove can stretch the mesh or even crack the frame channel. Conversely, a wheel that is too thin won’t provide enough leverage to seat the mesh.
-
Starting the Corner: Start at a corner and ensure the mesh is aligned. Use the pointed wheel first to “pre-crease” the mesh into the groove. This prevents the spline from jumping out during the next step.
-
The Reinforcement Pass: After rolling the spline in with the concave wheel, go back over the entire perimeter with a flat-head screwdriver. Gently press the spline deeper into the corners and any areas where it looks slightly elevated. This manual “check” ensures the mesh won’t pop out during a summer storm.
-
Navigating Hardware: Be extremely careful around pull tabs, handles, or spring latches. These are stress points. Use your screwdriver to meticulously tuck the mesh around these obstacles. Forcing the roller over a handle can easily slice your brand-new screen.
-
The Zero-Gap Finish: When completing the loop, ensure the two ends of the spline meet perfectly. Even a 2mm gap is enough for small insects to find their way inside.
Step 4: Precision Trimming
Once the screen is tight and the spline is double-checked, it’s time to trim.
-
Blade Angle: Use a fresh, sharp utility knife blade. Hold the blade against the outer edge of the spline channel.
-
Safety Tip: Always cut away from the spline and away from your body. If the blade slips toward the center, you’ll ruin the screen you just installed.
Step 5: Final Inspection and Reinstallation
Give the mesh a light tap to check for a drum-like tension. If there are any ripples, you can pull a section of the spline out and re-roll it before the final trim. Once satisfied, pop the frame back into the window and enjoy your clear, bug-free view!
Why DIY Your Screen Repair?
By following these steps, you aren’t just fixing a hole; you are maintaining your home’s envelope. Professional-grade cleaning and precise spline installation extend the life of your windows and improve indoor air quality by allowing fresh air in while keeping pollutants and pests out.
Happy Home Remodeling!
